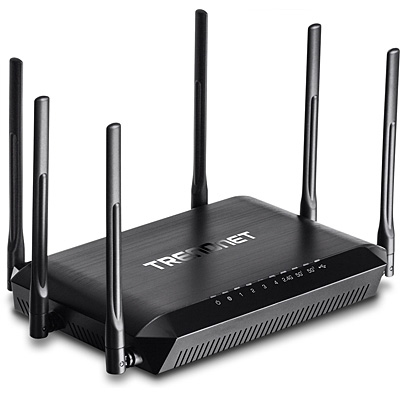

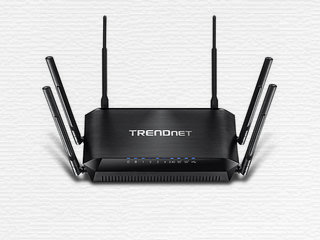

TRENDnet’s AC3200 extreme performance Tri Band Wireless Router, model TEW-828DRU, produces three concurrent wireless networks—two separate 1300 Mbps Wireless AC networks and a 600 Mbps Wireless N network. Smart Connect technology automatically groups slower and faster AC devices to separate WiFi AC bands. High performance Gigabit ports, a 1 GHz dual core processor, six high gain antennas, high power amplifiers, and a SuperSpeed USB 3.0 share port deliver extraordinary networking speed and range.

For Busy Homes Three concurrent extreme WiFi networks and all Gigabit ports seamlessly handle the explosion of connected home devices and high bandwidth streams such as 4K video.	Smart Connect Technology Smart Connect automatically manages both 1.3 Gbps WiFi AC bands by grouping slower devices on one band and faster devices on the highest performing band.	Network Protection Tools TRENDnet includes tools to help protect your home network including parental controls, guest networks isolated from your devices/content, and pre-encrypted WiFi.

	Easy Setup Get up and running in minutes with the intuitive guided setup
	Simultaneous AC3200 Tri Band Three concurrent WiFi bands maximize device networking speeds: two separate extreme performance 1300 Mbps Wireless AC networks and a 600 Mbps Wireless N network
	Smart Connect Technology Smart Connect technology virtually combines the two separate WiFi AC bands, so that only one WiFi AC network is visible, while managing each band individually. Slower and faster WiFi AC devices are grouped together and automatically assigned to the two separate WiFi AC bands, thereby optimizing networking speeds
	Pre-Encrypted Wireless For your convenience the AC3200 router’s WiFi bands are pre-encrypted with their own unique passwords
	Wireless Coverage High performance amplifiers and six high gain antennas maximize wireless coverage
	Gigabit Ports Gigabit ports support high performance wired connections
	USB 3.0/2.0 Share Ports Plug in a USB 3.0 flash or storage drive into the SuperSpeed USB 3.0 or the USB 2.0 share port
	Guest Network Create an isolated network for guest internet access only
	Parental Controls Control access to specific websites
	One Touch Connection Securely connect to the AC3200 router at the touch of the Wi-Fi Protected Setup (WPS) button
	Targeted Beamforming Increased real-time performance by directing stronger wireless signals to your specific location
	1 GHz Processor Extreme performance 1 GHz dual core processor optimizes networking throughput
	VPN Support Secure remote access to the router with OpenVPN support
	DD-WRT TRENDnet's TEW-828DRU AC3200 router is now compatible with DD-WRT open source firmware

• Standards

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3x

• IEEE 802.3ab

• IEEE 802.11a

• IEEE 802.11b

• IEEE 802.11g

• IEEE 802.11n (2.4 GHz 600 Mbps TurboQAM™*, 5 GHz up to 450 Mbps)

• IEEE 802.11ac (Band 1 and Band 2 up to 1300 Mbps)

• Hardware Interface

• 4 x Gigabit LAN ports

• 1 x Gigabit WAN port

• 1 x USB 3.0 (Storage FTP, Samba)

• 1 x USB 2.0 (Storage FTP, Samba)

• Power switch

• WPS button

• Reset button

• LED indicators

• Special Features

• Smart Connect automatically groups slower and faster AC devices to separate WiFi AC bands

• Multi-language interface: English, French, Spanish, German, Russian

• Pre-encrypted wireless network

• IPv6 support

• 1 guest network per band with option for internet access only

• Up to 2 additional SSIDs per band

• Dynamic DNS support for dyn.com and no-ip.com

• Samba/FTP server support

• Implicit and Explicit Beamforming

• Access Control

• Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS

• Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet

• ALG: PPTP/L2TP VPN Passthrough, Telnet, POP3/SMTP/TFTP/FTP/RTP/SIP Passthrough

• Parental (Access) Controls: MAC, URL, IP Filter

• OpenVPN support

• Quality of Service

• WMM

• Inbound/outbound 5 priority queues

• Internet Connection Types

• Dynamic IP (DHCP)

• Static IP (Fixed)

• PPPoE (Dynamic IP/Static IP)

• PPTP (Dynamic IP/Static IP)

• L2TP (Dynamic IP/Static IP)

• IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, 6to4, 6rd)

• Management/Monitoring

• Local/remote web based management

• Upgrade firmware

• Backup/restore configuration

• Internal logging

• Reboot

• Restore to factory defaults

• Ping test

• Routing

• Static

• Frequency

• 2.412 - 2.462 GHz

• 5.180 – 5.825 GHz

• Modulation

• 802.11b: CCK, DQPSK, DBPSK

• 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM

• 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM

• 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

• Media Access Protocol

• CSMA/CA with ACK

• Antenna Gain

• 2.4 GHz: 3 x 4.6 dBi (max.) external/5 GHz: 6 x 5 dBi (max.) external

• Wireless Output Power

• 802.11a: 19 dBm (max.) @ 54 Mbps

• 802.11b: 26 dBm (max.) @ 11 Mbps

• 802.11g: 20 dBm (max.) @ 54 Mbps

• 802.11n (2.4 GHz): 20 dBm (max.) @ 600 Mbps

• 802.11n (5 GHz): 19 dBm (max.) @ 450 Mbps

• 802.11ac: 19 dBm (max.) @ 1300 Mbps

• Receiving Sensitivity

• 802.11a: -72 dBm (typical) @ 54 Mbps

• 802.11b: -84 dBm (typical) @ 11 Mbps

• 802.11g: -75 dBm (typical) @ 54 Mbps

• 802.11n (2.4 GHz): -68 dBm (typical) @ 600 Mbps

• 802.11n (5 GHz): -68 dBm (typical) @ 450 Mbps

• 802.11ac: -55 dBm (typical) @ 1300 Mbps

• Wireless Channels

• 2.4 GHz: 1-11

• 5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165

• Power

• Input: 100 – 240 V AC, 50 - 60 Hz

• Output: 12 V DC, 3.5 A external power adapter

• Consumption: 37.5 Watts max.

• Operating Temperature

• 0 – 40 °C (32 – 104 °F)

• Operating Humidity

• Max. 85% non-condensing

• Certifications

• FCC

• Dimensions

• 240 x 170 x 45 mm (9.5 x 6.7 x 1.8 in)

• Weight

• 581 g (20.5 oz.)

• Warranty

• 3 year limited
